AI checks every drawing before release. Your team approves.
The AI goes through every drawing before release and flags missing tolerances, conflicting dimensions and gaps in the title block. A colleague or the team lead approves the revision, and the released drawing goes to your PLM and your supplier.

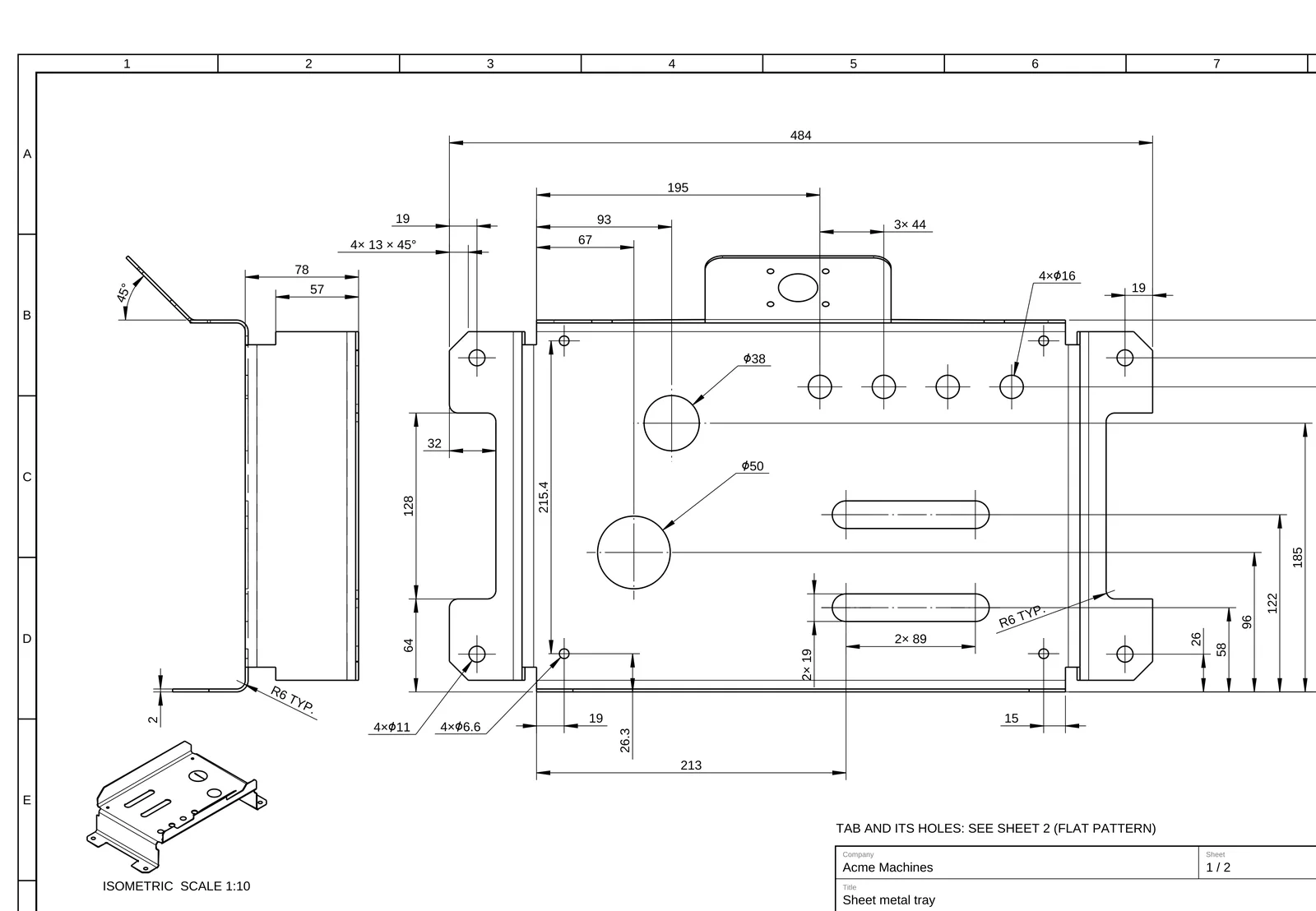

Sheet metal tray · Rev C
AI review
2 Oct
3 findings, all resolved
Approved
5 Oct
Sarah Collins
Released
5 Oct
To PLM and the supplier
Every drawing checked before release
Missing tolerances, conflicting dimensions and gaps in the title block are flagged before anyone approves the drawing. Whoever approves spends the time on the decisions.
Pen

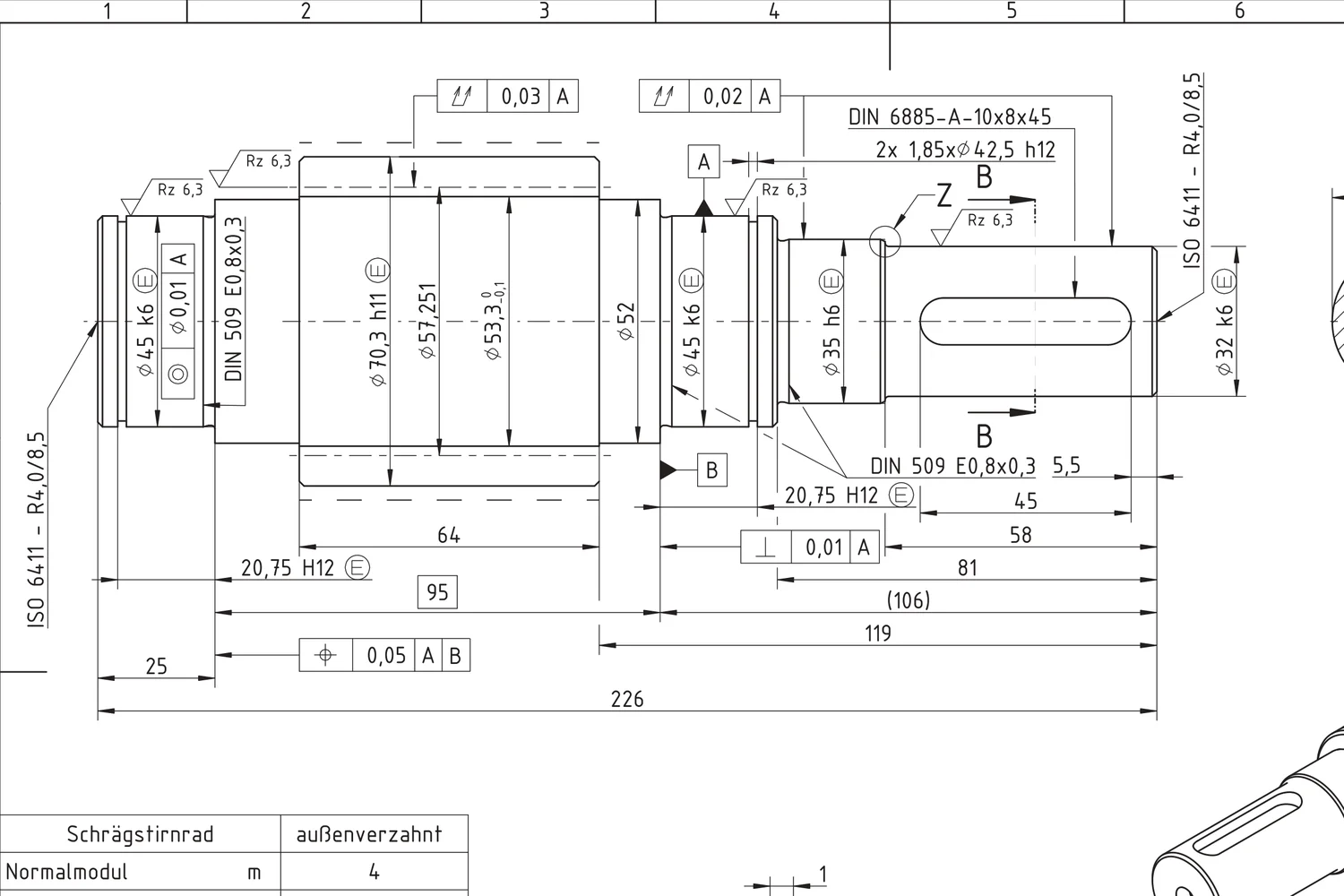

AI reviewDiameter dimension missing between the Ø45 k6 journal and the pinion.

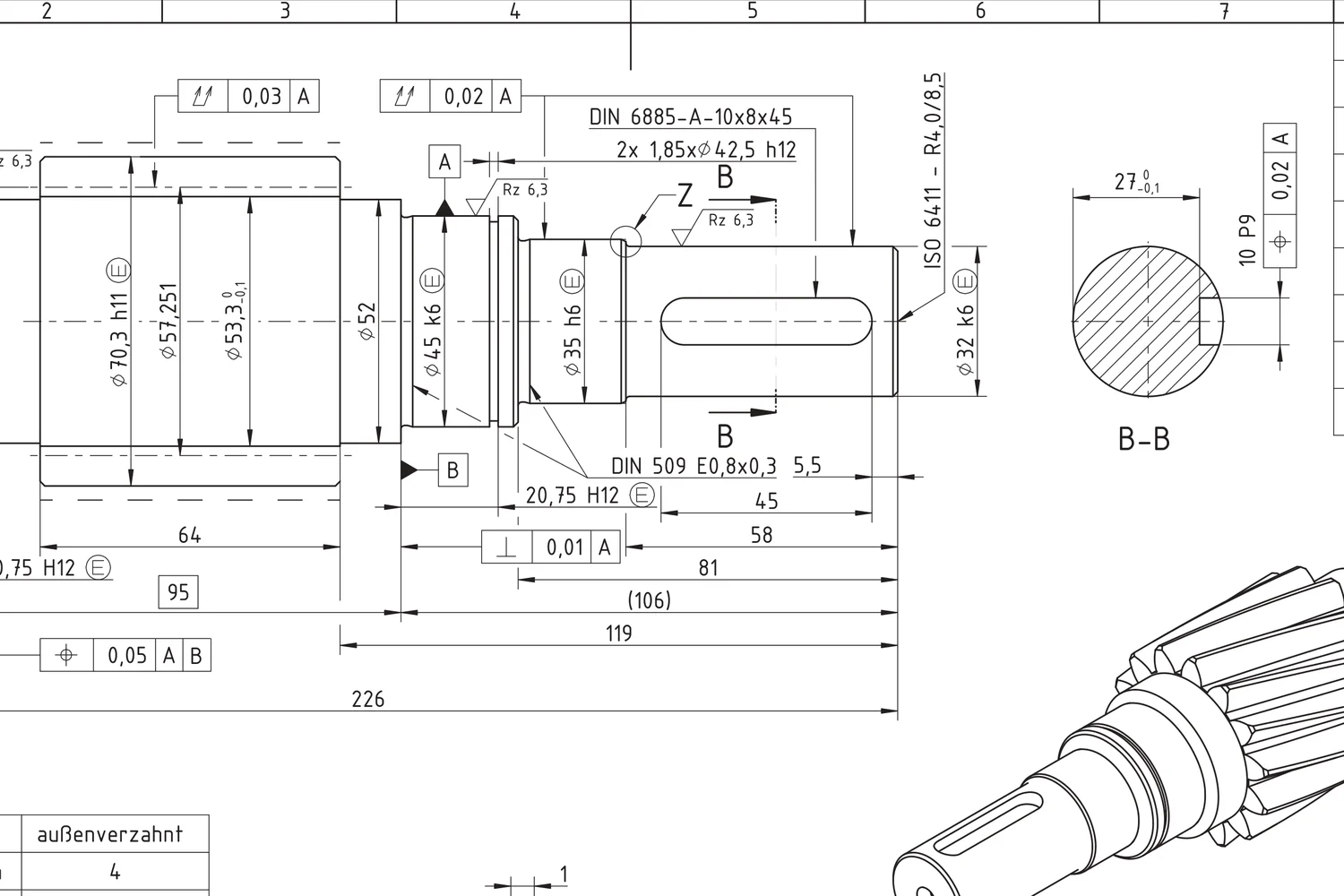

Markups on the drawing
Colleagues comment on the exact dimension, not in an email. Open points stay open until they are resolved.
Sarah Collins
Ø45 k6 bearing seat: do you need this ground or is turned acceptable?
Martin Keller
Ground, please. The bearing sits there.
Approval per revision
Each revision is approved on its own. You can always see who released what, and when.

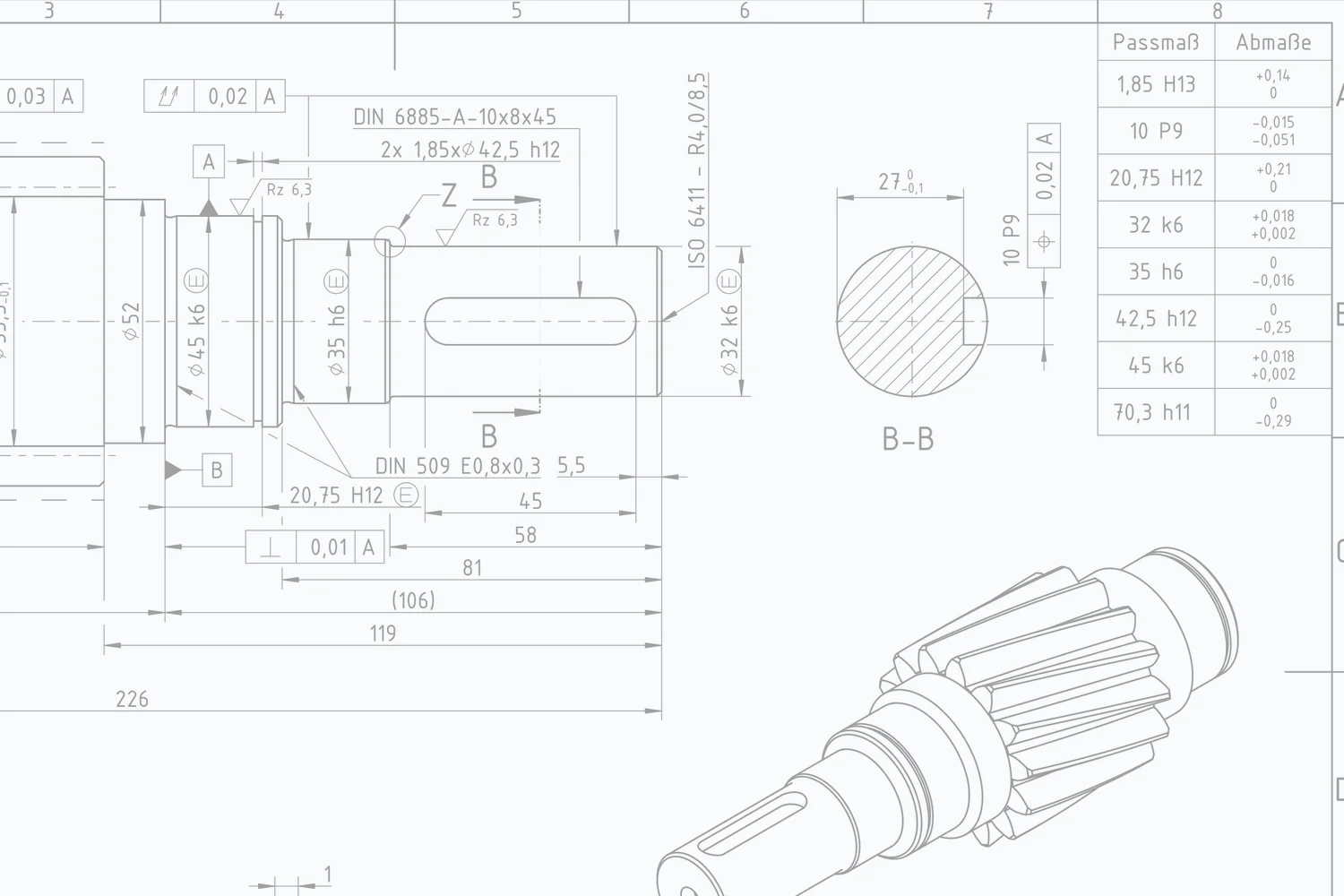

Comments
Diameter dimension missing between the Ø45 k6 journal and the pinion.
ResolvedKeyway depth 20,75 H12: measured from the shaft surface?
ResolvedØ45 k6 bearing seat: do you need this ground or is turned acceptable?
OpenReleased with its model
Release the drawing and its STEP file together as one package, so the shop gets the matching pair in one link.
Robot arm, release 2
Package with one 3D model and two drawings
Robot arm
3D model
Approved
Base plate
Drawing
Approved
Gripper handle
Drawing
Updated, to review
2 of 3 files approved
Between your CAD and your PLM
Drawings come into ClearHandoff when the designer checks them in from CAD. Once approved, the released revision goes back into your PLM with its review attached. We set up the connection to your systems with you.
We look at your CAD and PLM together.
Try it with example drawings
A T-joint weldment shown without weld specification
Review in ClearHandoff
A steel connector plate with a missing datum identifier and undimensioned chamfers
Review in ClearHandoff
"I've been on both sides of the handoff"
As a mechanical engineer, I've designed parts, created engineering drawings, taught drawing standards at university, and worked with manufacturers. I built ClearHandoff because I know how much gets lost between 'done' and 'delivered.'
— Andreas Haselsteiner, Founder
Have questions?
Book a quick callPricing
From €16 a month billed annually, AI credits included.
Pro
For teams starting with AI review.
€16
/ month
billed annually
for
AI credits / month
1 user included, more users €16 each
AI review of CAD files and drawings
Reviews to your company standards
Comments and approvals in one place
Free guest reviewers
Autodrafting from 3D models
Scale
For orgs standardizing AI review.
€800
/ month
billed annually
for
AI credits / month
Shared by everyone in your organization
Everything in Pro, plus:
Unlimited users
Personal onboarding with our team
Priority support
Enterprise
Your own cloud, on-premise hosting or SSO.
Custom
Unlimited users, credits sized to your organization
SSO / SAML
On-premise or regional hosting
SLA & compliance
Custom CAD & PLM integrations
Start for free with 20 AI credits to try. Uploads, comments and sharing are always free.
Prices shown are before VAT / sales tax
Frequently asked questions
Faster drawing releases.
The AI does the first check, your team approves, and every release is on record.
Free to start, no credit card needed.
