AI that checks steel shop drawings
We set it up for your checklist and shop standards in a fixed-scope project. It reviews the PDFs you already export from Tekla Structures or SDS2, so your presentation check starts from its findings.
30 minutes, bring a recent job

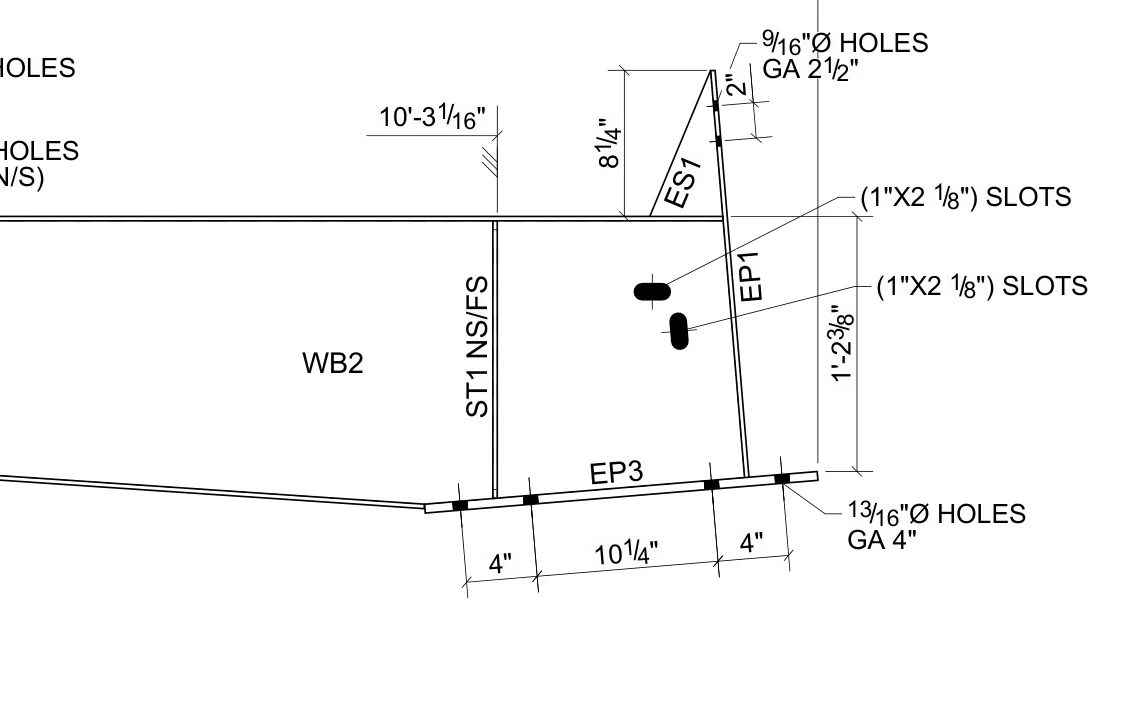

The 4, 10 1/4, 4 hole chain on EP3 has no overall dimension and no edge distances.
AI review
The 4, 10 1/4, 4 hole chain on EP3 has no overall dimension and no edge distances.
AI review

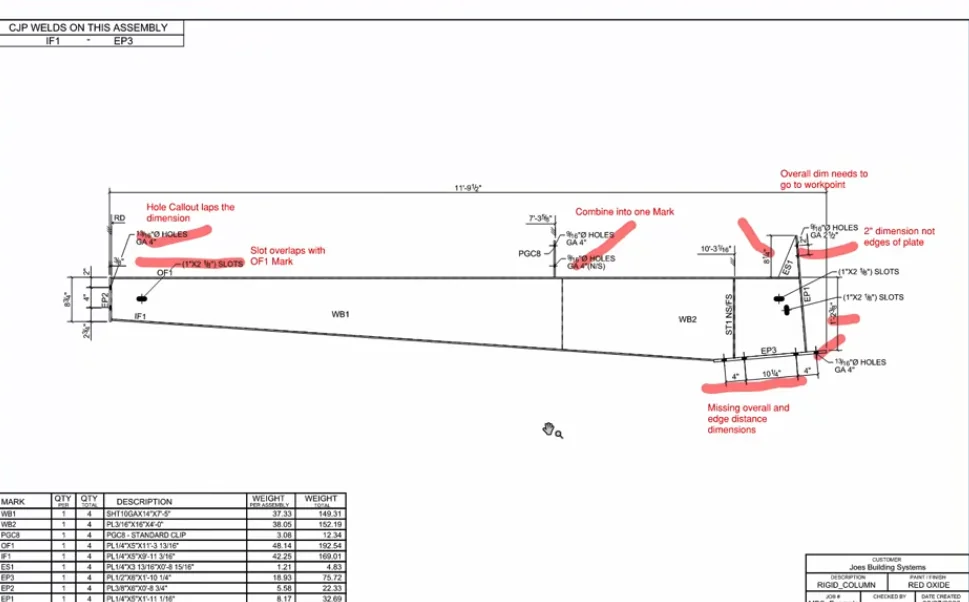

"I like how the AI actually found additional things that my eyes weren't looking at."
Chris Keyack
Close to 30 years in steel detailing, former Tekla Structures developer
How a project runs
Scoping call
We look at your jobs, your checklist and where errors get through today. You get a fixed-price proposal.
Setup on past jobs
We build your review from your standards and check prints, and measure it against what your checker actually marked up.
Live on your jobs
Your team uploads sheets from Tekla Structures or SDS2. Each sheet comes back with findings your checker confirms or dismisses.
What setup covers
- Review rules from your checklist and shop standards
- Tuning against check prints from your past jobs
- A full test job before go-live, with results you can compare
- Onboarding for your checkers and detailers
Your drawings and check prints stay confidential. We never train AI models on them.
Setup project
one-time
Fixed price, set in the proposal after the scoping call
Then our regular plans
monthly
A sheet in a drawing set uses 2 AI credits, about USD 0.50. About 500 sheets a month fits Pro at USD 250, about 2500 fits Scale at USD 1250.
See what it would catch on your jobs.
Bring a recent job to the call. We tell you what a setup would cover and what it costs.
